Quick Charge 3.0 快充 +5V +9V +12V 18W Max
高通驍龍系统芯片中的快速充電技術，使裝置的充電速率能高於標準USB
共三組輸出電壓 18W Max
+5Vdc 3A (15Watts)
+9Vdc 2A (18Watts)
+12Vdc 1.5A (18Watts)

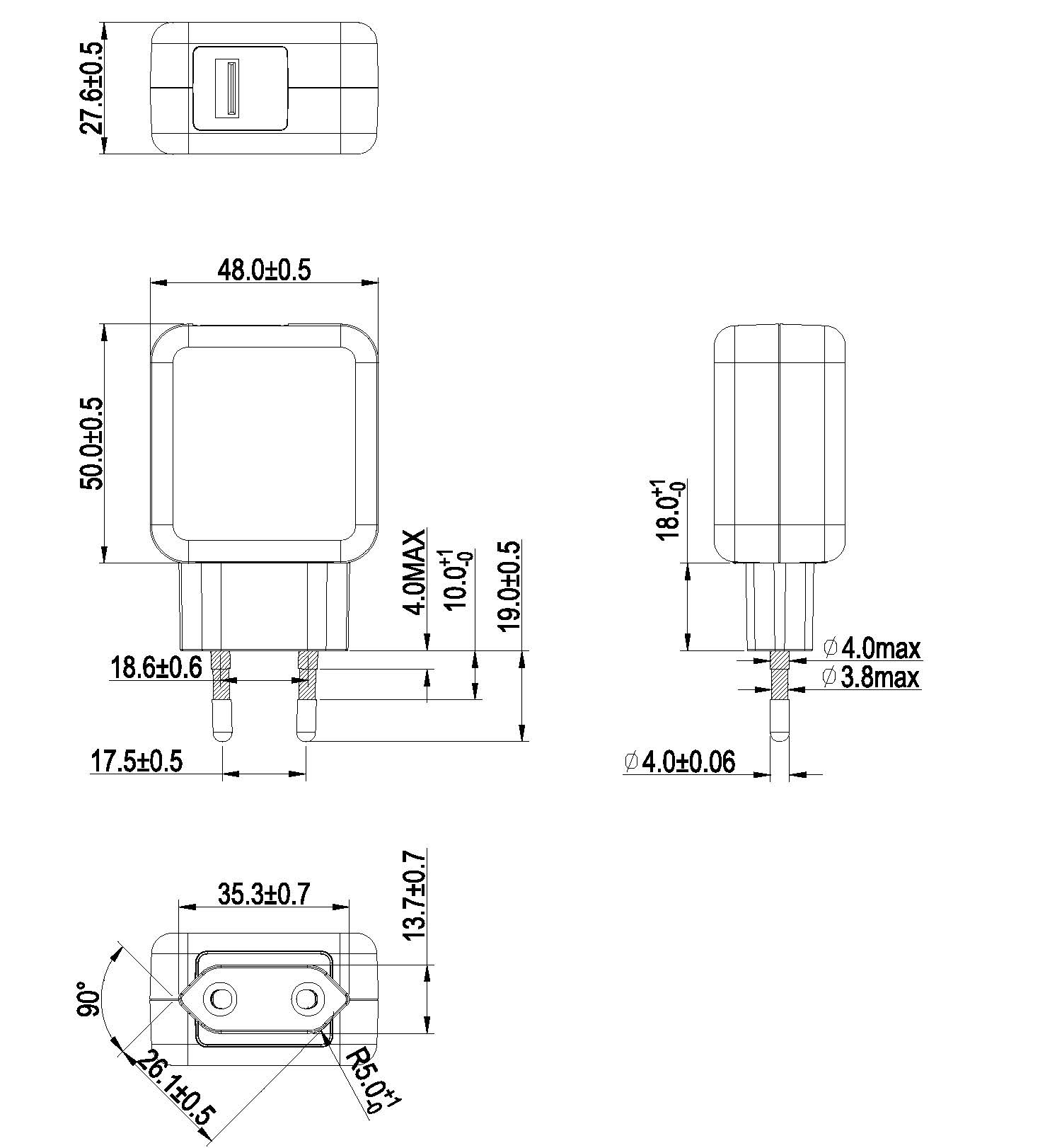

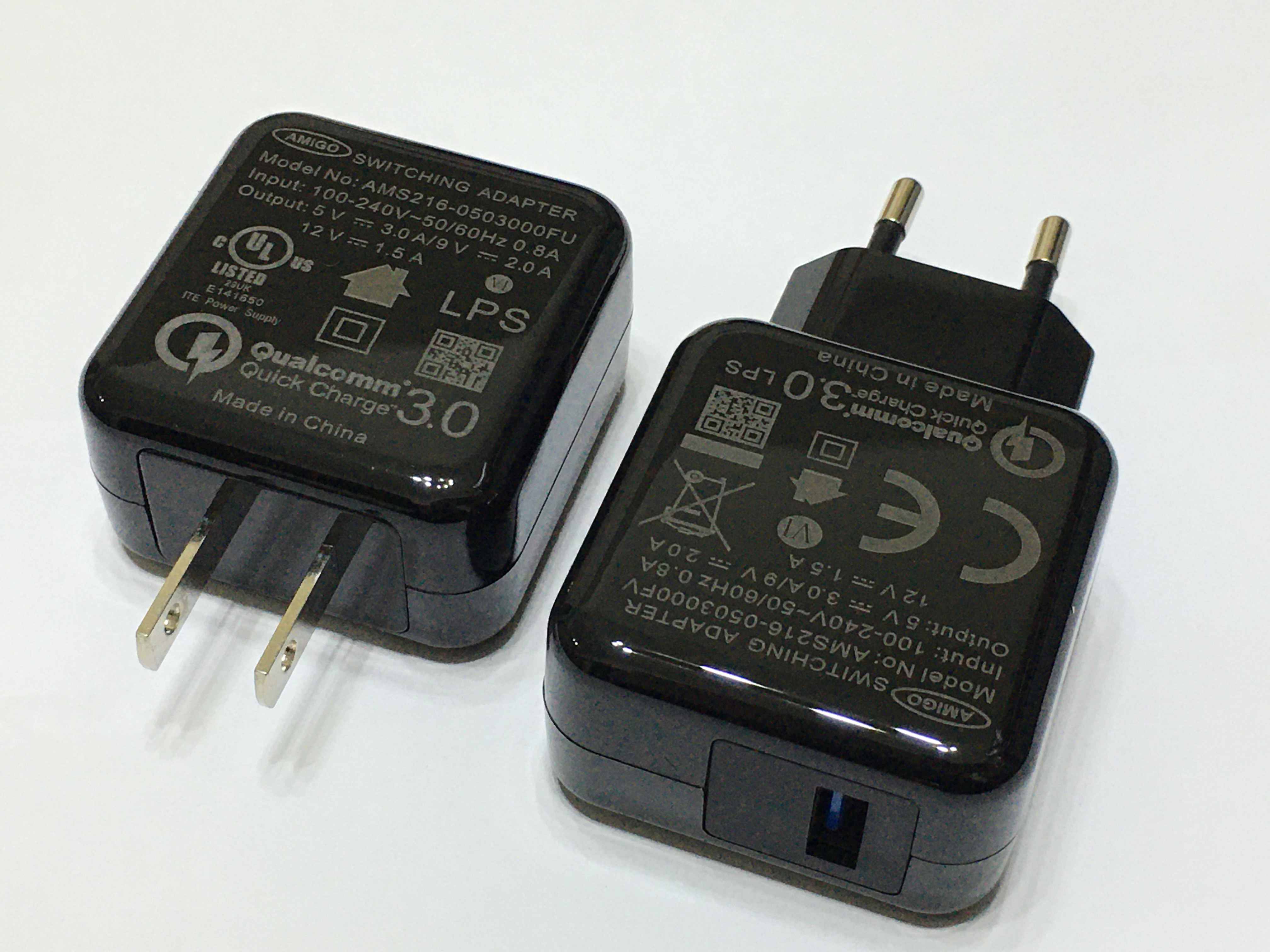

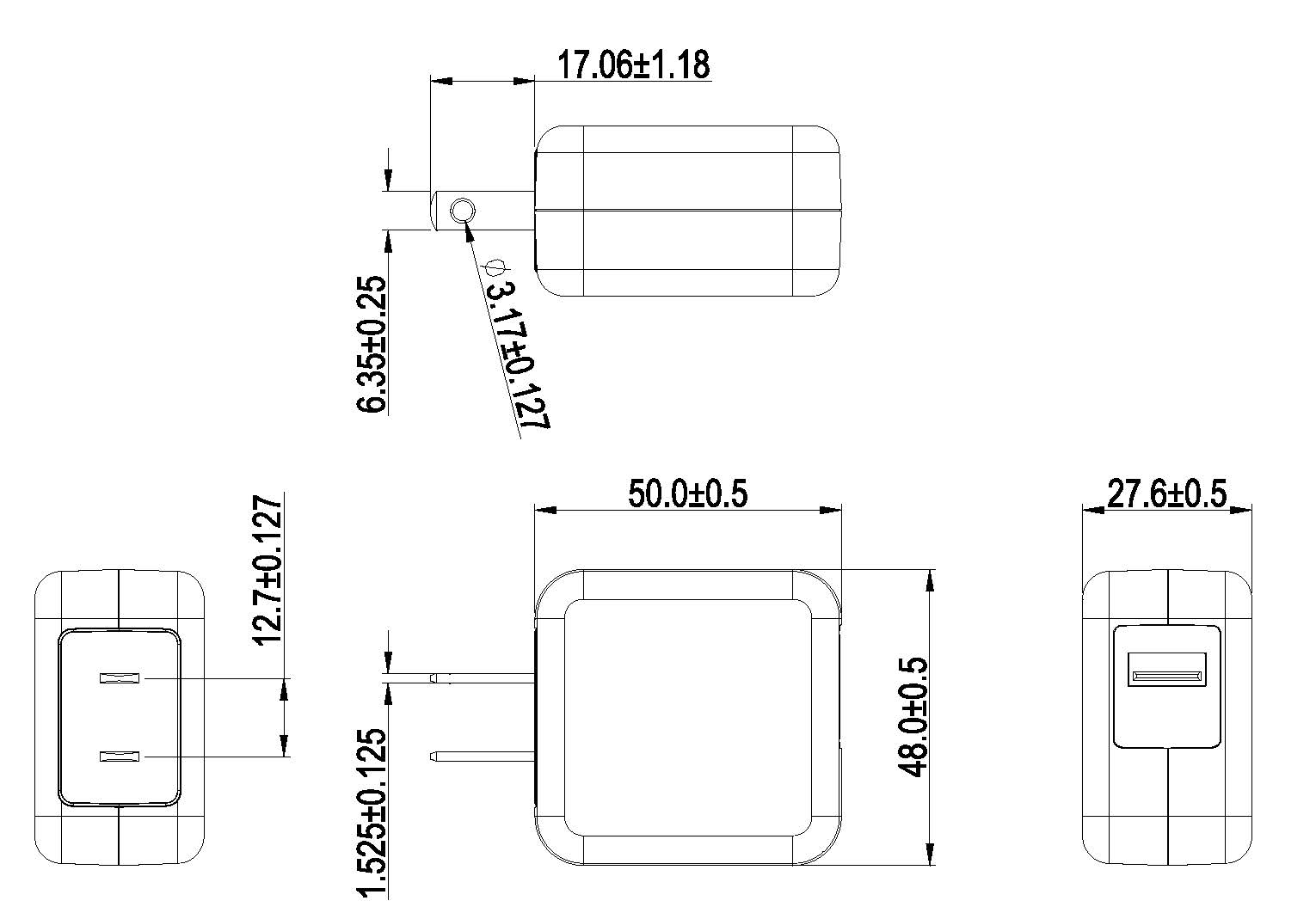

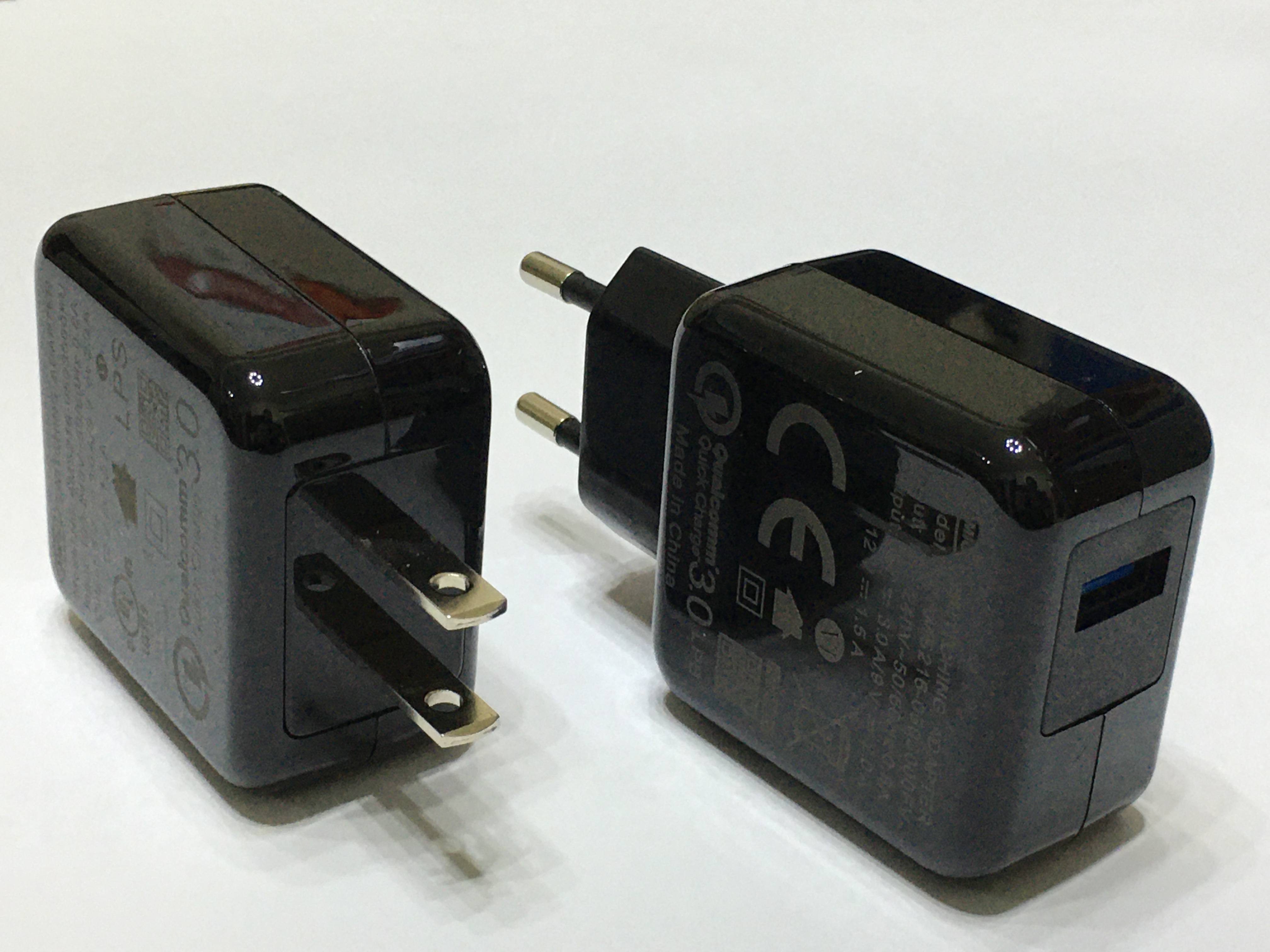

Quick Charge 3.0快速充電 +5V+9V+12V 18W Max
ADAPTER
1. Electrical:
1-1. Input Characteristics:
1-1-1.Rated Voltage
It isnormalfrom 100 Vac to 240 Vac input AC voltage
1-1-2.Input VoltageRange
The Adapter shalloperatefrom 90 Vacto 264 Vac input AC voltage
1-1-3.RatedFrequency
It isnormalfrom 50 Hzto 60 Hz and singlephase.
1-1-4.Frequency Range
The Adapter shall operate with an input frequencyfro 47 Hzto 63 Hz.
1-1-5.Steady AC Current
Maximum steady state input current is lessth 0.8Arms. Measured at 100Vac Inputvoltage.
1-1-6.Inrush Current
At Full Load ,25℃, Cold Start
No Component Over Stress and No Fuse Blow No Damage To The Power Supply
1-1-7.Minimum Average Efficiency In Active
The average efficiency must over 5V/81.84%，9V/85.45%.12V/85.45% at 115Vac/230Vac input & 25%, 50%, 75% and 100% of Max. load (After 30 minutes operating, meet
Energy Star Level VI)
1-1-8.No load power ( Stand-by consumption )
The no load power islessthan 0.1 W at 115 Vacand / 230 Vac (Criteria : Level VI )
The output mode of the product can be adjusted automaticaiiy by the load
This Adapter capabletosuppor 18 Watts continuously at all specifiedconditions.
1-2. OutputCharacteristics:
1-2-7.Output Ripple and Noise
1-1. Input Characteristics:
1-1-1.Rated Voltage
It isnormalfrom 100 Vac to 240 Vac input AC voltage
1-1-2.Input VoltageRange
The Adapter shalloperatefrom 90 Vacto 264 Vac input AC voltage
1-1-3.RatedFrequency
It isnormalfrom 50 Hzto 60 Hz and singlephase.
1-1-4.Frequency Range
The Adapter shall operate with an input frequencyfro 47 Hzto 63 Hz.
1-1-5.Steady AC Current
Maximum steady state input current is lessth 0.8Arms. Measured at 100Vac Inputvoltage.
1-1-6.Inrush Current
At Full Load ,25℃, Cold Start
No Component Over Stress and No Fuse Blow No Damage To The Power Supply
1-1-7.Minimum Average Efficiency In Active
The average efficiency must over 5V/81.84%，9V/85.45%.12V/85.45% at 115Vac/230Vac input & 25%, 50%, 75% and 100% of Max. load (After 30 minutes operating, meet
Energy Star Level VI)
1-1-8.No load power ( Stand-by consumption )
The no load power islessthan 0.1 W at 115 Vacand / 230 Vac (Criteria : Level VI )
|
Output Voltage |
Minimum Voltage(V) |
Maximum Voltage(V) |
Output Current |
| Continuous | |||
| +5Vdc | +4.85Vdc(in board) | +5.35Vdc | 3A (15Watts) |
| +9Vdc | +8.1Vdc | +9.9Vdc | 2A (18Watts) |
| +12Vdc | +10.8Vdc | +13.2Vdc | 1.5A (18Watts) |
The output mode of the product can be adjusted automaticaiiy by the load
This Adapter capabletosuppor 18 Watts continuously at all specifiedconditions.
1-2. OutputCharacteristics:
1-2-7.Output Ripple and Noise
Ripple & Noise ≦ Measuredmethods: 240 mVp-p (Full loadatI/P: 115Vac 60Hzand 230Vac 50 Hz)
Performed by 20MHz bandwidth in oscilloscope. Applied 0.1uF ceramic capacitor and 10uF electrolytic capacitor across output connector terminal. Measured at the end of DC cable.Test temperature at 25℃.
1-2-8.Turn On Delay Time3S Max. At 100Vac input and output Max Load
1-2-9.Hold Up Time 10mS Max. At 100Vac input and output Max Load
1-2-10.Protection Short Circuitprotection
The power supply will be auto recovered when short circuit faults remove
A: Short Circuitprotection
The power supply will be auto recovered when short circuit faults remove
B: Over current protection (OCP)
The power supply will be auto recovered when over current faults remove.
C: Over voltage protection ( OVP)
The voltage will not exceed the upper trip limit. Use for ZENER diode
| Input Voltage | Output Voltage | Upper |
| 100-240Vac | 4.85Vdc~5.35Vdc(5.1V±5%) | /Vdc |
| 100-240Vac | 8.1Vdc~9.9Vdc | /Vdc |
| 100-240Vac | 10.8Vdc~13.2Vdc | /Vdc |
2.Environmental:
2-1.Temperature2-1-1.Operating
The Adapter is capable to operatefrom 0℃ to. 40℃
2-1-2.Non-Operating
The Adapter is capable to be stored fro -10℃ to. 60℃
NOTE:The bending angle of SR part must not be exceed 90˚
2-2.Humidity
2-2-1.Operating
The Adapter is capable tooperatefrom 10 to 90 % RH. ( non condensing)
2-2-2.Non-Operating
The Adapter is capable to bestoredfro 5 to 95 % RH. ( noncondensing)
